Square D

Details & Specifications

Amperage20

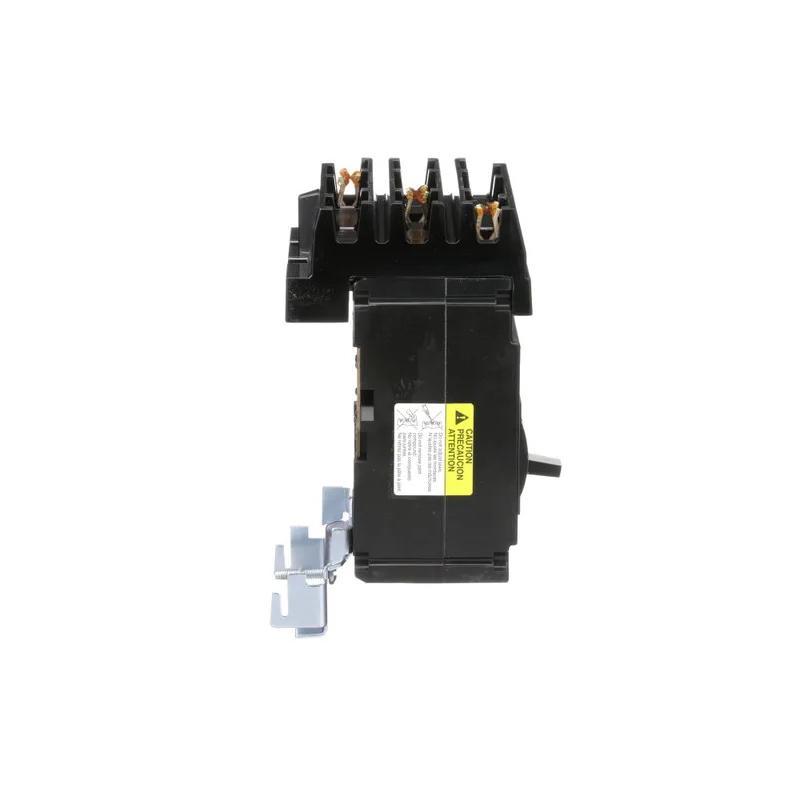

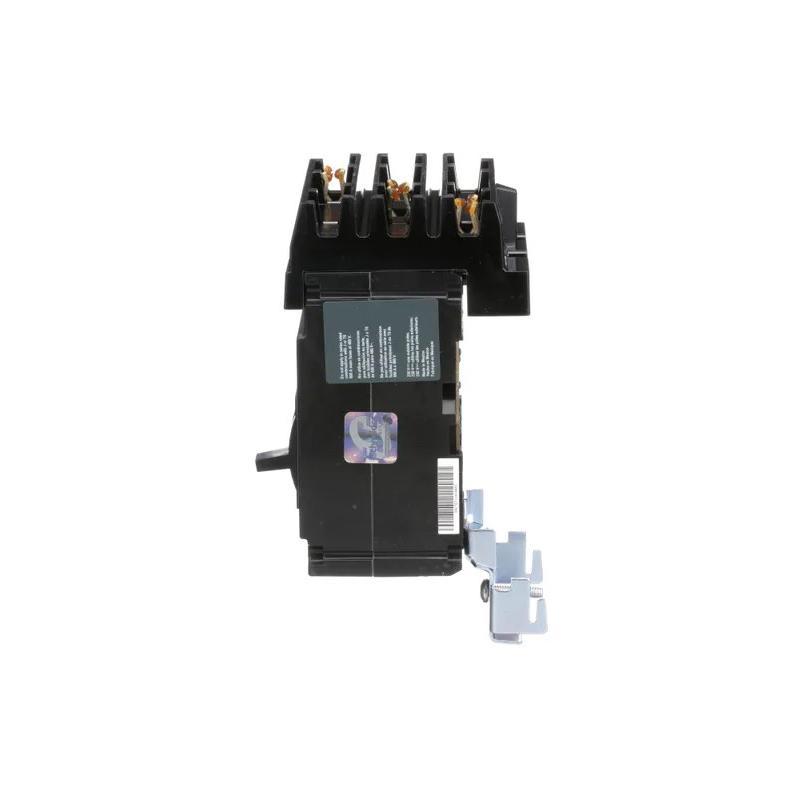

Connection(I-Line) Plug-on Circuit Breaker
Frame Type100 A
Interrupt Rating14kA@600Vac, 25kA@120Vac, 25kA@240Vac, 18kA@480Vac, 10kA@125Vdc, 10kA@250Vdc
Poles3
ProtectionThermal-Magnetic
SuffixNo Special Feature
TypeStandard
Voltage600 Vac
Wire Range#12-#4 Al, #14-#4 Cu

Description

Authentic FA36020

Thermal-Magnetic Molded Case Circuit Breaker manufactured by Schneider Square D. Used in various applications.

FY14015 is part of Schneider Square D's legacy line. Most of the legacy devices are obsolete but will be in service for many years.

Protection

Thermal-magnetic Molded case circuit breakers are the most common overcurrent protection devices. Their primary functions are to provide a means to manually open a circuit and automatically open a circuit under overload or short circuit conditions. Thermal-magnetic circuit breakers use bimetals and electromagnetic assemblies to provide overcurrent protection. Their characteristic inverse time tripping under overload conditions is ideally suited for many applications varying from residential to heavy industrial loads. For higher level (short circuit) overcurrents, instantaneous trip characteristics allow molded case circuit breakers to interrupt with no intentional delay.

Standards

Manufactured and tested according to the following standards and files:

  • Underwriters Laboratories Inc. (UL) Listed to UL489 Standard, File E10027,
  • National Electrical Manufacturers Association (NEMA) AB-1 Standard,
  • Canadian Standards Association (CSA) Certified to CSA C22.2 No. 5-02 Standard, File LR7551,
  • International Electrotechnical Commission (IEC) 60947-2 Standard,
  • Federal Specification W-C-375B/GEN as Class 11a, 11b; 12a, 12b; and 13a, 13b.
