Category Molded Case
Manufacturer Square D
Poles 3
Phase 3
Voltage AC 480
Amperage 100
Protection Thermal Magnetic
Functions LI - Long-Time and Instantaneous
Connection Feed-Thru
Interrupt Rating [email protected]
Standard UL, CSA, NOM, IEC
UPC 782114798775
Trip Ì_å_ Mag Trip Setting 700 to 1200 Ampere

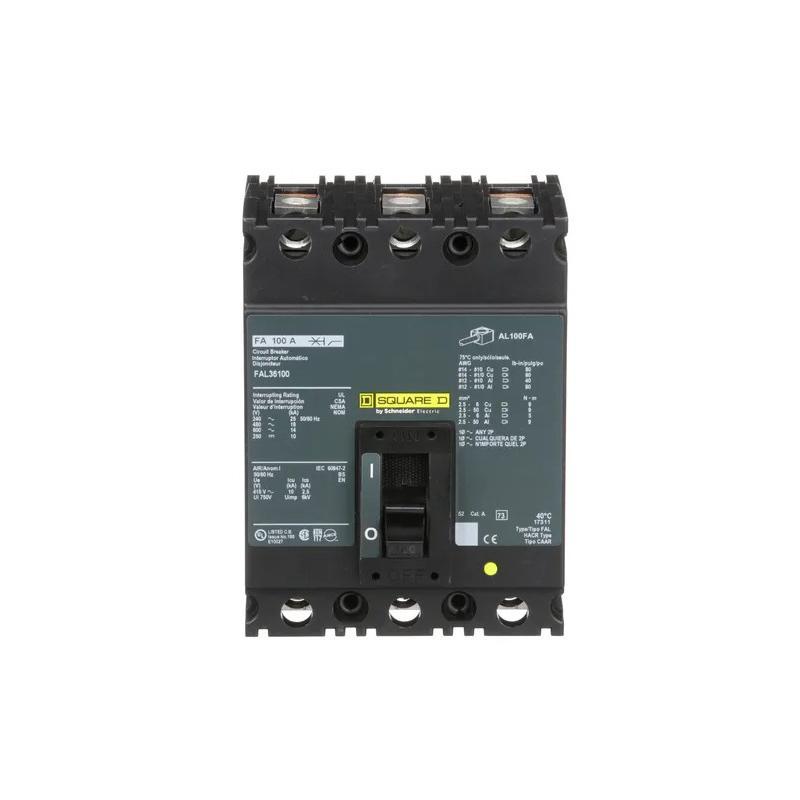

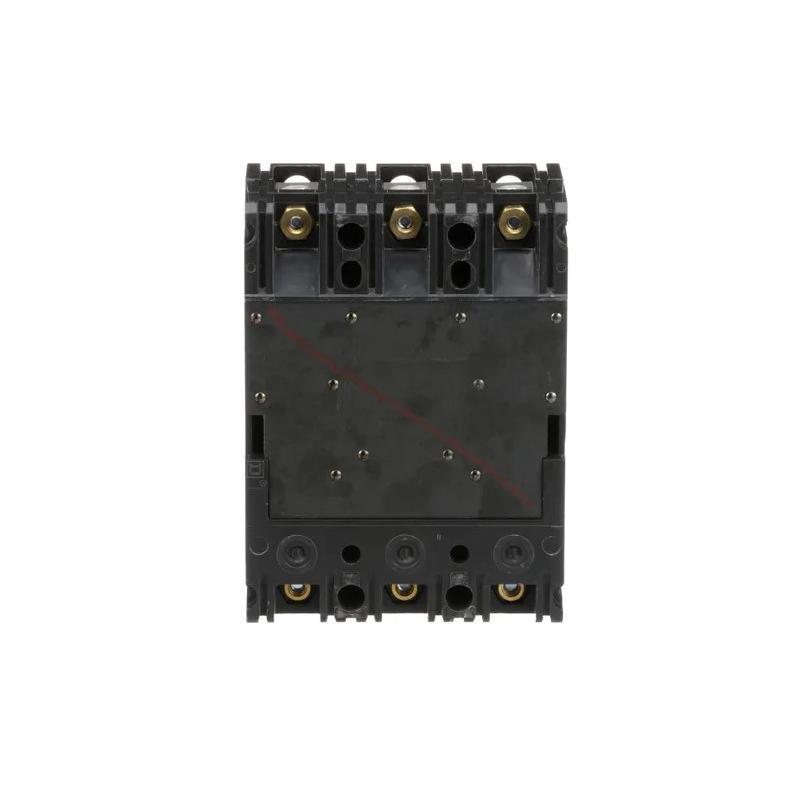

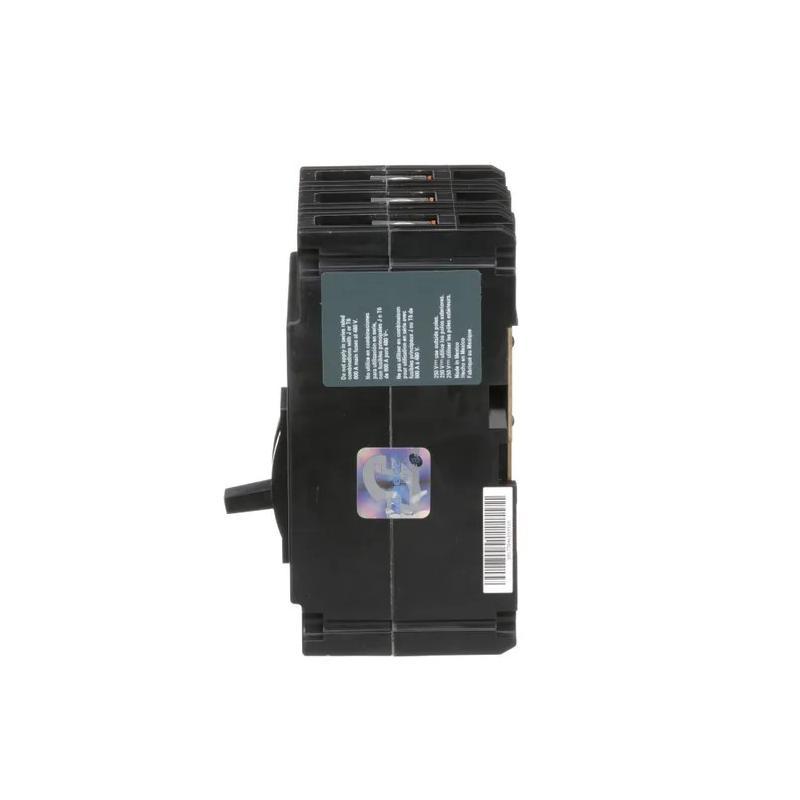

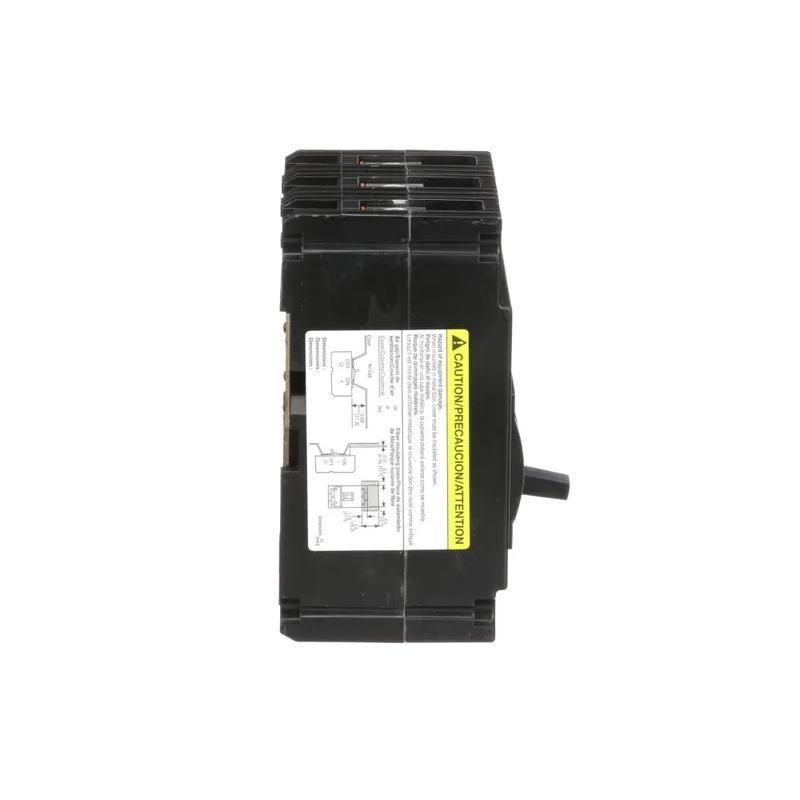

Authentic FAL34100 Square D Molded Case Circuit Breaker. 100 Amp, 3 Pole, 3 Phase, 480 Voltage AC. Feed-Thru Connection. Thermal Magnetic Protection. LI – Long-Time and Instantaneous Function. 25 kA at 240 VAC| 18 kA at 480/480 Star/277 VAC| 14 kA at 600/600 Star/347 VAC| 10 kA at 250 VDC Interrupt Rating.
