Category Molded Case
Manufacturer Square D
Poles 3
Phase 3
Voltage AC 600
Amperage 200
Protection Thermal Magnetic
Functions LI - Long-Time and Instantaneous
Connection I-Line Style Plug-In
Interrupt Rating [email protected]
Standard UL, CSA, NOM, IEC
UPC 782114798775 785901875253
Trip Non-Interchangeable and Thermal-Magnetic

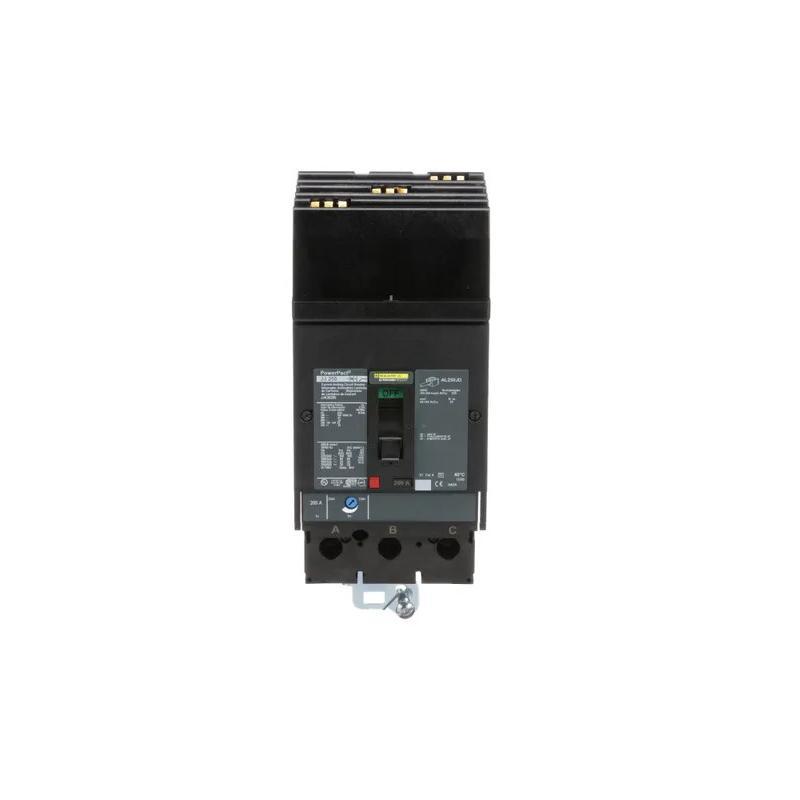

Authentic JJA36200 Square D Molded Case Circuit Breaker. 200 Amp, 3 Pole, 3 Phase, 600 Voltage AC. I-Line Style Plug-In Connection. Thermal Magnetic Protection. LI – Long-Time and Instantaneous Function. 100 kA at 240 VAC| 65 kA at 480 VAC Star/277 VAC Or 480 VAC| 25 Ampere at 600 VAC Star/347 VAC Or 600 VAC Interrupt Rating.
