DETAILS & SPECIFICATIONS
| Category | Molded Case |
| Manufacturer | Square D |
| Poles | 3 |
| Phase | 3 |
| Voltage AC | 600 |
| Amperage | 250 |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous |
| Connection | Feed-Thru |
| Interrupt Rating | [email protected] |
| Standard | UL, CSA, NOM, IEC |
| Frequency Rating | 50/60 Hz |

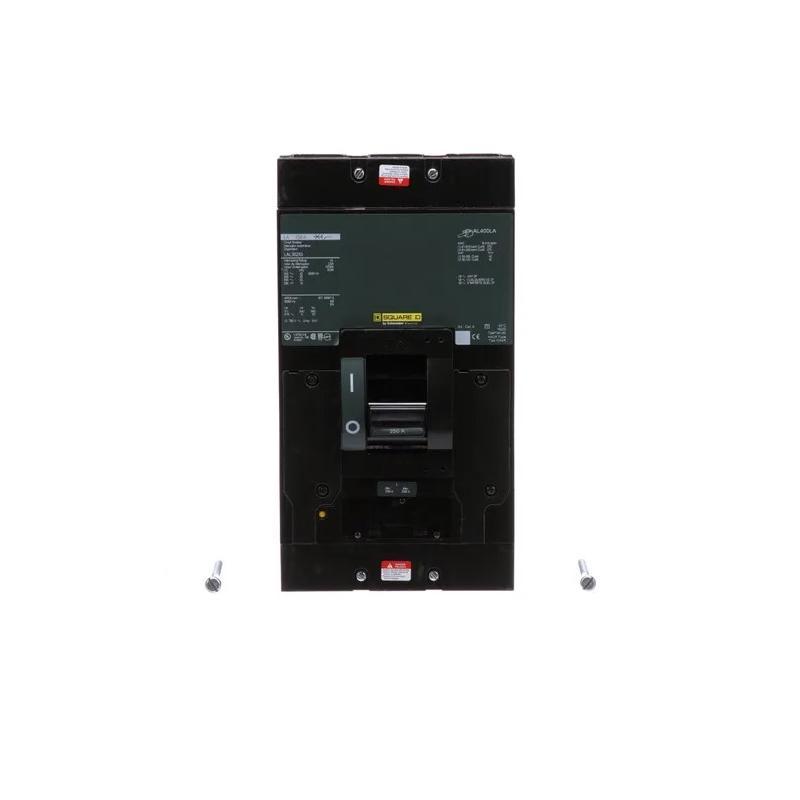

Authentic LAL36250 Square D Molded Case Circuit Breaker. 250 Amp, 3 Pole, 3 Phase, 600 Voltage AC. Feed-Thru Connection. Thermal Magnetic Protection. LI – Long-Time and Instantaneous Function. 20 kA at 415 VAC|10 kA at 250 VDC|42 kA at 240 VAC| 30 kA at 480 VAC Star/277 VAC Or 480 VAC| 22 kA at 600 VAC Star/347 VAC Or 600 VAC Interrupt Rating.
LAL36250
Square D
